Description
SPECIFICATIONS
Essentials
Product Collection
Intel® NUC Kit with 9th Generation Intel® Core™ Processors
Code Name
Products formerly Ghost Canyon
Status
Launched
Launch Date
Q1’20
Supported Operating Systems
Windows 10, 64-bit
Board Number
NUC9i9QNB
Board Form Factor
PCIe
Internal Drive Form Factor
1 Tb M.2 SSD PRO
# of Internal Drives Supported
3
Board Chipset
Mobile Intel® CM246 Chipset
Processor Included
Intel® Core™ i9-9980HK Processor (16M Cache, up to 5.00 GHz)
Intel® vPro™ Platform Eligibility
No
# of Cores
8
# of Threads
16
Processor Base Frequency
2.40 GHz
Max Turbo Frequency
5.00 GHz
Warranty Period
3 Years
Memory & Storage
Max Memory Size (dependent on memory type)
32 GB
Memory Types
DDR4-2666
Max # of Memory Channels
2
Max Memory Bandwidth
42.6 GB/s
Max # of DIMMs
2
ECC Memory Supported
No
Processor Graphics
Processor Graphics
Intel® UHD Graphics 630
Integrated Graphics
Yes
Graphics Output
2x Thunderbolt 3, HDMI 2.0a
# of Displays Supported
3
Discrete Graphics
Via PCIe add-in card(s)
Expansion Options
PCI Express Revision
Gen3
PCI Express Configurations
2x M.2 PCIe X4 slots (PCH), 1x M.2 PCIe X4 slot (CPU) Double-wide PCIe X16 (CPU) slot shared with PCIe X4 (CPU) slot, 8″ max card length
PCIe x4 Gen 3
1
PCIe x16 Gen 3
1
Removable Memory Card Slot
SDXC with UHS-II support
M.2 Card Slot (storage)
2x via PCH + 1x via CPU (NVMe)
I/O Specifications
# of USB Ports
11
USB Configuration
4x rear USB 3.1g2, 2x Thunderbolt 3 (USB 3.1g2), 2x front USB 3.1g2, 2x USB 2.0 via internal headers, 1x USB 2.0 internal
USB Revision
3.1 Gen2, 2.0
USB 2.0 Configuration (External + Internal)
3x int.
Total # of SATA Ports
3
Max # of SATA 6.0 Gb/s Ports
3
RAID Configuration
2x M.2 SATA/PCIe SSD, SATA header (RAID-0 RAID-1)
Audio (back channel + front channel)
7.1 digital; L+R+mic (F); L+R+TOSLINK (R)
Integrated LAN
Intel® Ethernet Connection i219-LM and i210-AT
Integrated Wireless
Intel® Wi-Fi 6 AX200
Integrated Bluetooth
Yes
S/PDIF Out Connector
TOSLINK
Additional Headers
CEC, 2x USB2.0, FRONT_PANEL
# of Thunderbolt™ 3 Ports
2
Package Specifications
Chassis Dimensions
238 x 216 x 96mm
Advanced Technologies
Intel® Optane™ Memory Supported
Yes
Intel® Virtualization Technology for Directed I/O (VT-d)
Yes
Intel® vPro™ Platform Eligibility
No
TPM
Yes
Intel® Rapid Storage Technology
Yes
Intel® Virtualization Technology (VT-x)
Yes
Intel® Platform Trust Technology (Intel® PTT)
Yes
Security & Reliability
Intel® AES New Instructions
Yes
All information provided is subject to change at any time, without notice. Intel may make changes to manufacturing life cycle, specifications, and product descriptions at any time, without notice. The information herein is provided “as-is” and Intel does not make any representations or warranties whatsoever regarding accuracy of the information, nor on the product features, availability, functionality, or compatibility of the products listed. Please contact system vendor for more information on specific products or systems.
New

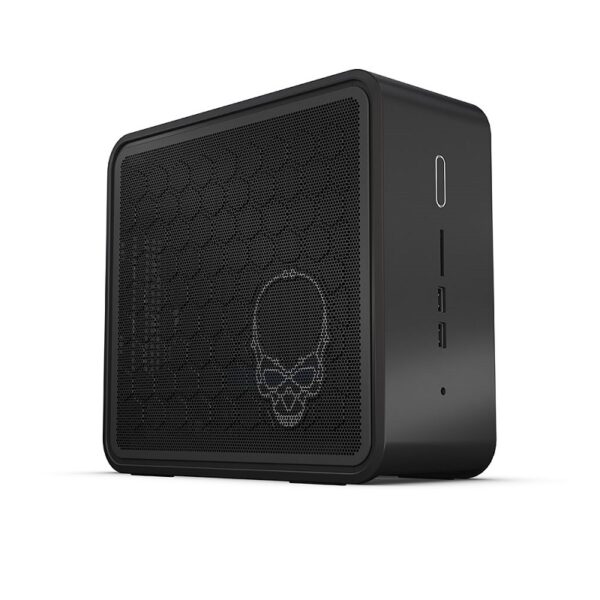

NUC EXTREME
BUILD YOUR DREAM RIG
Game like never before with the highest-performing Intel® NUC for consumers
Build a true mini gaming PC without compromising on performance. Intel® NUC 9 Extreme kit (NUC9i7QNX) with an upgradeable Intel® NUC Compute Element provides the building blocks to give you the power to build the exact Intel® NUC you need.
Full-Powered Desktop Graphics
The Intel® NUC 9 Extreme Kit supports up to an eight-inch discrete graphics card, giving enthusiast gamers the flexibility they need to build a monster rig for gaming and streaming simultaneously.
Incredibly Compact
The Intel® NUC 9 Extreme Kit is housed in a 5-litre chassis—making this one of the smallest footprint gaming systems available that supports desktop discrete graphics.
LEVEL UP. WAY UP.
Imagine your dream gaming rig. Then build it with the Intel® NUC 9 Extreme Kit, the highest-performing Intel® NUC available for consumers today. Ultra-powerful, compact and modular, it’s also upgradable with an Intel® NUC 9 Extreme Compute Element.
WHAT’S ON THE INSIDE?
A pre-installed upgradeable Intel® NUC 9 Extreme Compute Element gives you the performance you need with modern day advanced technologies and connectivity.
Intel® Core™ i7-9750H Processor
2.60 GHz – 4.50 GHz Turbo, 6 core, 12 thread, 12MB Cache, 45W
Dual channel DDR4 SODIMMs
Supports 1.2V, max 64GB at 2400MHz or 32GB at 2666MHz
Intel® Optane™ Ready
Intel® Optane™ SSD and Intel® Optane™ Memory M10 and H10 ready
Whether it’s for content creation, media editing or premium productivity, get all that you need to stay creative and productive all day.
- Graphic Design & Illustration
- Photo, Video, Audio Editing
- 3D Animation
- Architecture & Engineering
- Office Apps Multitasking
Be it casual gaming, mainstream gaming or enthusiast gaming, enjoy the ultimate experience to keep you engrossed all night.
- AAA Games
- Role-Playing Games
- Simulation Games
- Strategy Games
- Sports Games
THE 1ST NUC TO SUPPORT DESKTOP GRAPHICS
Intel’s smallest NUC that supports a dual-slot PCIe x16 graphics card. Take gaming to the extreme by pairing your NUC with a powerful desktop discrete graphics card.
PCIe X16 slot with 6+2-pin & 6-pin PCIe power connectors, up to 225W, up to 8″ card length, dual-slot capable.
To view compatible products, visit: compatibleproducts.intel.com/ProductDetails?EPMID=190109
WHY GAME ON AN INTEL® NUC?
When it comes to mini PC gaming, Intel® NUC is at the top of the leaderboards in performance, portability, and gameplay.
Powerful Processors for Gaming
Intel® NUC 9 Extreme kits are powered by the latest 9th Gen Intel® Core™ processors that deliver seamless gameplay on the hottest AAA game titles.
Cool and Quiet
The Intel® NUC 9 Extreme kit utilises an innovative L-shaped vapor chamber and optimally uses firmware-controlled fans to efficiently draw cool air to critical components to ensure the system is consistently cool and quiet as you game and create.
Big Wins, Small Size
Going to a LAN party? Esports competition? Intel® NUC mini PCs are so compact, you can drop one into a backpack and take it anywhere.
Intel® NUC Reliability and Support
Intel® NUC is the only mini PC platform engineered, manufactured, and backed by Intel. Every Intel® NUC comes with a three-year warranty and 24/7 support from Intel.
BROAD CONNECTIVITY
Including four rear USB 3.1 ports, in addition to two front USB 3.1 ports, the NUC 9 Extreme provides surplus room for peripherals. Two Intel® Gigabit LAN ports, Intel® WiFi 6 and Bluetooth 5 cover all your networking needs. The NUC 9 Extreme also includes dual Thunderbolt™ 3 Ports and a HDMI 2.0a port to power displays.
2x USB 3.1 Gen 2 Type-A Ports
SDXC Slot with UHS-II Support
3.5mm Stereo Headset Jack
2x Intel® Gigabit LAN Ports
4x USB 3.1 Gen 2 Type-A Ports
HDMI 2.0a Connector
2x Thunderbolt™ 3 Ports
PCIe x16 Slot
PCIe x4 Slot
500W Internal Power Supply
WHAT YOU NEED TO GET STARTED
The Intel NUC 9 Extreme is a new modular compact gaming PC that makes it simple to max out on performance and upgrade in the future. To get started, you’ll need to choose and install memory, storage and an operating system.
*Check system specifications to ensure you choose compatible hardware.
